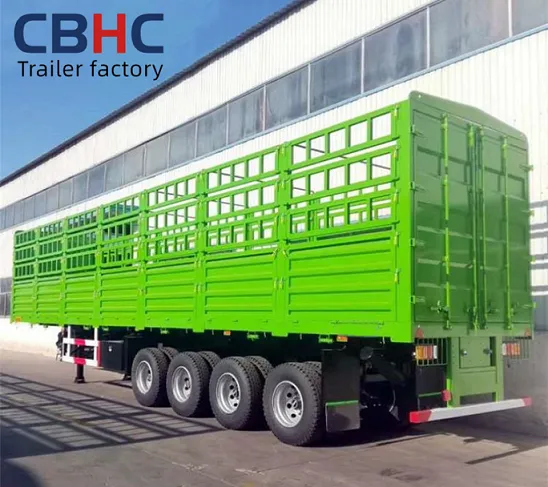

Fence Cargo Truck Trailer

Fence Cargo Truck Trailer

Side wall semi trailer have a wide usage, it's basically used for medium and long-distance transportation , it can transport a wide range of bulk cargo, like sand, bags, animals etc.The standard length of the trailer is 12.5m, 13m.The side panel can be 0.6m, 0.8m, 1m, 1.2m, or 1.8m etc.lt can have multi -fuction , such as we can also install additional container locks or detachable columns according to customers'special requirements.The panel and fence can be disassembled , after disassembled , it can use as a flatbed trailer.
Send Inquiry
Description
chinese fence semi trailer

Fence Cargo Truck Trailer

Fence semi trailer is designed with fencing structure, which is mainly used in the transportation of farm and sideline products, livestock and other light goods. The utility model has the advantages of simple structure, convenient application, convenient disassembly, reduced investment cost for customers and more profit. And we can also make the double deck according to the special needs of our customers.

Mature Welding Process: Benhong adopts automatic submerged arc welding method to weld the main beam. The longitudinal beam is completed by automatic tracking submerged arc welding machine. All components are shot peening to improve paint adhesion and are painted prior to assembly, making the main beam stronger and more durable.






comparison of product parameters
Model NO. BH-1257 Side wall and Fence 600mm+600mm, size is optional
Products material B345Q Function 2x20 ft container or 1x40ft container or others goods
Voltage 24V Side beam 16 U shaped steel or I shaped steel
Container twist lock 12pcs Main beam The height of the beam is 50mm, upper plate is 14mm,
down plate is 16mm, middle plate is 8mm
Axle brand

FUWA, BPW

 Axle number 3 axles 13tons
Landing gear Suspension system Suspension system Mechanical suspension
Steel spring 10/10/10 Tire 12.00R22.5 tubeless tire
Platform thickness 3 mm diamond plate Brake

Double circuit brake system. The rear axle with T30/30 spring brake chamber and the

first 2 axles with T30 service brake chamber. WABCO, SEALCO or equivalent brand.
Tool box 1 unit Spare wheel carrier 2 units
Side marker lamp LED type Receptacle 7 ways





Product Feature and Application






1. Reliable Materials: We adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life. Besides, all the main parts, used in our trailers, must be processed with advanced equipment and have good reputations in the market.

2. Mature Design and Manufacture: We would like to design the trailer according to our customers' needs and special using conditions. Also, we would consider more than what them based on their final usage, and provide customers with reasonable suggestions when they are hesitating.

3. Rich experience: More than 20 years of experiences in producing and exporting trailers and other goods, we have helped hundreds of customers in more than 35 countries in Africa and Southeast Asia.


20230831154636

​​

Quality Inspection

extendable lowbed semi trailer

front lowbed semi trailer​​​​

                                                      ​​
Packing And Shipping




Professional shipping Plan, economical sea freight!!!



cargo fence semi trailer
fence stake semi trailer




Customer Praise and certification




flatbed container semi trailer


FAQ

Q: 1. How about the quality of your products?Can I trust you?

A: We have sixteen years of production experience . Guarantee Quality and Delivery !Since our establishment, we have
considered "products quality first" as our principle.

Q: Q1. How do you transport the semi trailers?

A: We transport the semi trailers by bulk or container. Our factory possesses long-term
cooperation with ship agency which can provide you lowest shipping fee.

Q: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay
the balance.

Q: How about your delivery time?

A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
