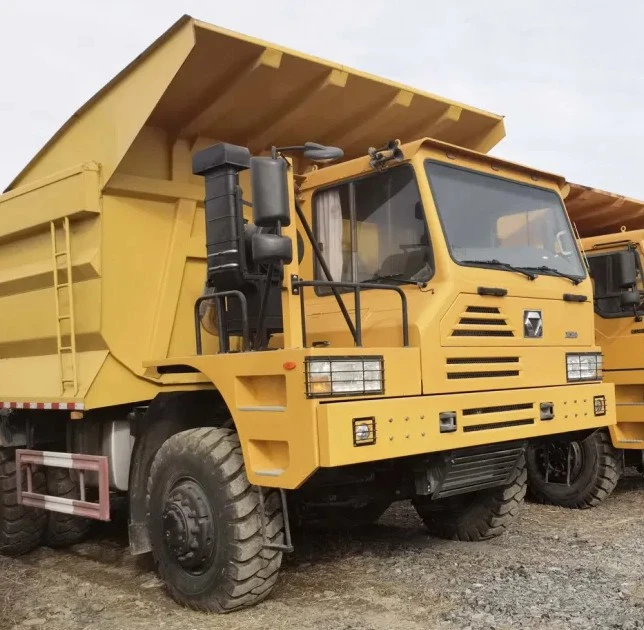

70ton Mining Dump Truck
Howo mining dumper is a heavy dump truck developed by sinotruk. It is mainly used for short-distance transportation in various open-pit mines, steel mills, hydropower construction sites, wharfs and other places with poor road conditions and poor working environment.
Product Parameter (specification)
| Item | SINOTRUCK HOWO 70TON MINING DUMP TRUCK 6x4 |
| Truck model |
ZZ5707V3640CJ |
| Max driving speed: |
50km/h
|
| Engine model | WD615.47,371HP, EURO II |
| Carriage internal size: |
5800*3100*1800mm, 32.364m3
|
| Front Axles | HF12, 12000KG |
| Rear Axles | AC26, 2X26000KG |
| Steering | ZF8098, GERMANY Ratio: 26.2-22.2 |
| Tires | 12.00-20 tube Option: 12R20 tube, 12R24 tube, 12R22.5 tubeless |
| Air conditioner | With safety belts for driver and co-driver;With air conditioner |
| Transmission | HW19710+HW70 PTO, 10 speed Ratio: 14.28, 10.26, 7.87,5.88, 4.38, 3.27, 2.43, 1.8, 1.34, 1.00; R1 13.91, R2 3.18 |
| Export Markets |
South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|
Loading Capacity |
At least 70t
|
| Driver's Cab | standard half cabin, with air conditioner |
Production details
Tipper Dump truck can be divided into many types:
1. According to vehicle size, there are mini dump truck, light Tipper Dump truck, medium ipper Dump truck, heavy-duty Tipper Dump truck.
2. According to chassis drive type, there are 4X2 Tipper Dump truck, 6X4Tipper Dump truck, 8X4 Tipper Dump truck, and off-road type 4X4, 6X6 Tipper Dump truck.
3. According to chassis brand, there are ISUZU Tipper Dump truck, Dongfeng Tipper Dump truck, Foton Tipper Dump truck, FAW fTipper Dump truck, Shacman Tipper Dump truck, SINOTRUK HOWO Tipper Dump truck, Mercedes Tipper Dump truck, etc.
Advantages:
1. Large loading capacity: 70tons
2. Low fuel consumption: Best engine combined with good gearbox and advanced tridem axles is the best powertrain matching.
3. Front axles steering system can increase the steering capacity at low speed. Real meet the mining aera's demand.
4. Rear steering system reduce the truning radius which make the flexibility increased. Meanwhile, it can reduce tire wear. To reduce customers' cost.
5. Hydro pneumatic suspension system of rear 2 axles make it more comfortable for driver. Also, the axles can be protected better due to the perfect vibration reducing performance of the hydraulic system. This also can extend the service time of the trucks.
6. Horizontal regulator make it safer when unloading the goods.

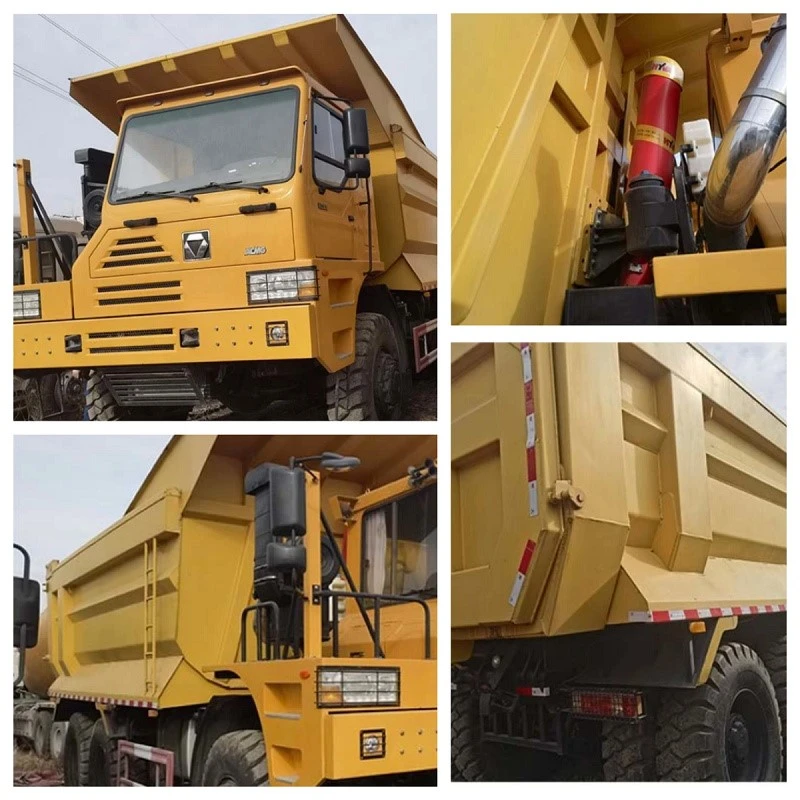

trailer hydraulic lift mining used dump truck
Products Description

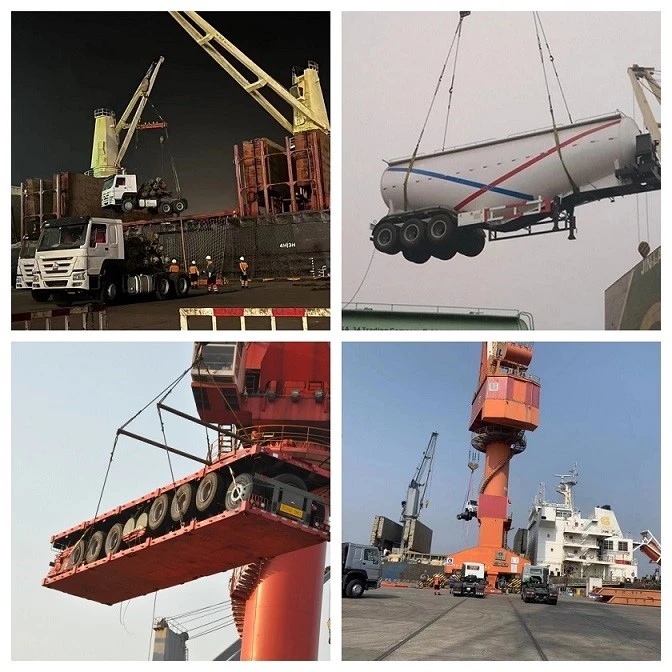

RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
Why choose us
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: 1: Our company promises a one-year warranty period. During this period, if the accessories are damaged during normal use, we will provide our customers with new accessories free of charge. 2: For operational problems, technical configuration problems, etc., we will provide customers with practical solutions.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3 working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
