45000 Liters Fuel Tanker Trailer
Liquid tanks are used for transporting liquids such as fuel, water, chemicals, acids and alcohol etc. The tank material can be fiberglass, carbon steel, stainless steel, aluminum per customer requirement.
The loading part structure of tank semi-trailer is tank structure, which is mainly used to transport liquid, bulk materials and bulk cement and other materials. According to the dierent goods pulled, the tank truck series can be divided into concrete mixing trucks, tanker trucks, powder materials and bulk cement trucks, water supply trucks, etc., there are many types.
Product details and parameters
|
Type |
Volume (L) |
Tare Weight (ton) |
Length (mm) |
Width (mm) |
Height (mm) |
|
Carbon Steel Tank |
45000 |
10.5 |
11200 |
2500 |
3980 |
|
Stainless Steel Tank |
45000 |
9 |
11200 |
2500 |
3980 |
|
aluminum Tank |
45000 |
8 |
11200 |
2500 |
3980 |
|
The above can be customized according to your local regulations and requirements. |
|||||
|
Capacity |
45000L or others |
|
Tank body |
Aluminum alloy material/5.5mm steel |
|
End plate |
Aluminum alloy material/6mm steel sheet |
|
Axle |
3*13T capacity, FUWA / BPW or other brand |
|
Suspension |
Spring mechanical suspension or air suspension |
|
Leaf spring |
Leaf spring or air bag |
|
Manhole cover |
500mm manhole cover |
|
Discharge valve |
2-4 set of φ100mm discharge valve |
|
Discharge pipe |
4" rubber hose, 2 pcs, 6m long |
|
Bottom valve |
1-2sets of bottom valve |
|
Outside sheet |
1.2mm steel sheet |
|
Compartment |
Optional upon choice |
|
Tire |
11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 Tire optional |
|
Wheel rim |
8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim optional upon choice |
|
Kingpin |
50# / 90# bolt-in king pin |
|
Landing gear |
JOST brand two-speed, manual operating, heavy duty landing gear |
|
Braking system |
Dual line brake system; T30/30 spring brake chamber; 40L air tanks |
|
Painting |
Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coat of final paint |
|
Accessories |
One standard tool box |
We have 3 axes 40000 l / 42000 l / 45000 l / 48000 l / 50000 l steel to aluminum transport oil/diesel/fuel/oil/milk/water/gas tanker trailer tank truck trailer tanker semi trailer used to transport oil/oil/diesel, etc., usually capacity from 30000 to 60000 litres. Compartments can be designed according to your requirements.
Now we have steel tankers/stainless steel tankers and aluminum tankers. Aluminum tankers are becoming more and more popular. light weight is its biggest advantage tank trailers are made of high-quality aluminum alloy. The dish structure of the tank plate can make the 1,000 gallon tank trailer force more evenly, so as to better protect the tank. Vehicle lightweight design, one molding process, less weld, vehicle appearance smooth, stable performance

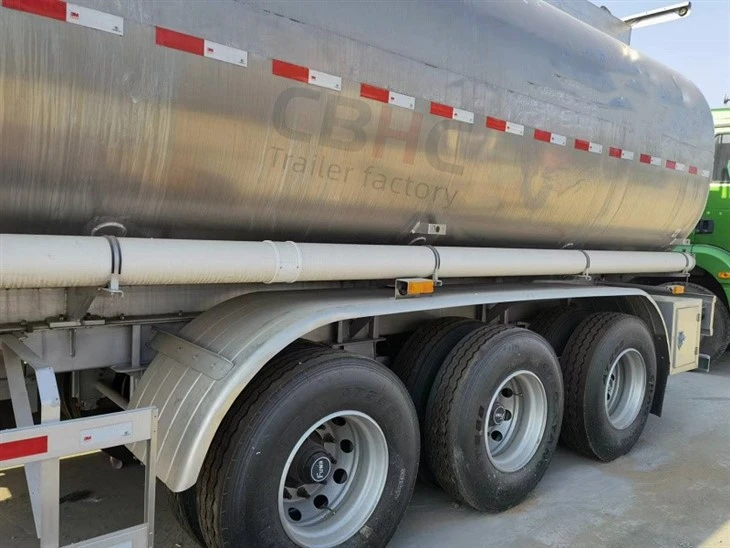

Fuel semi trailer

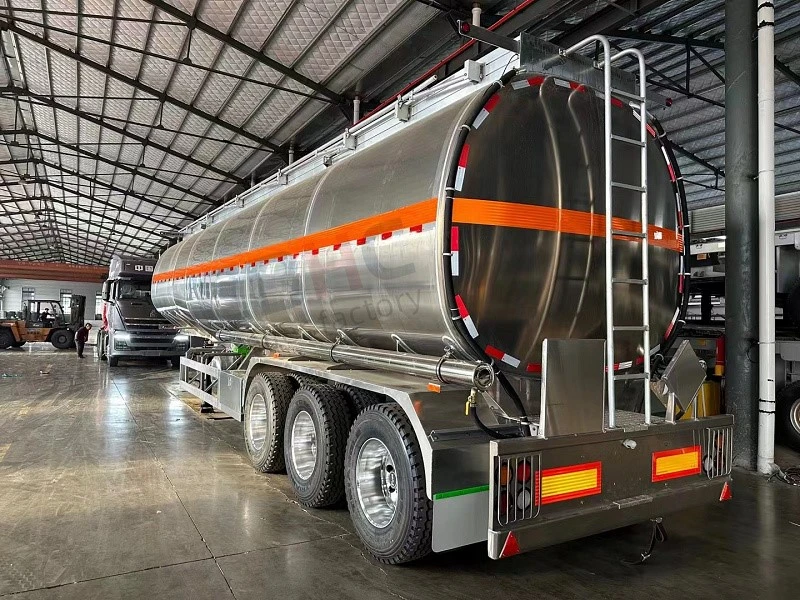

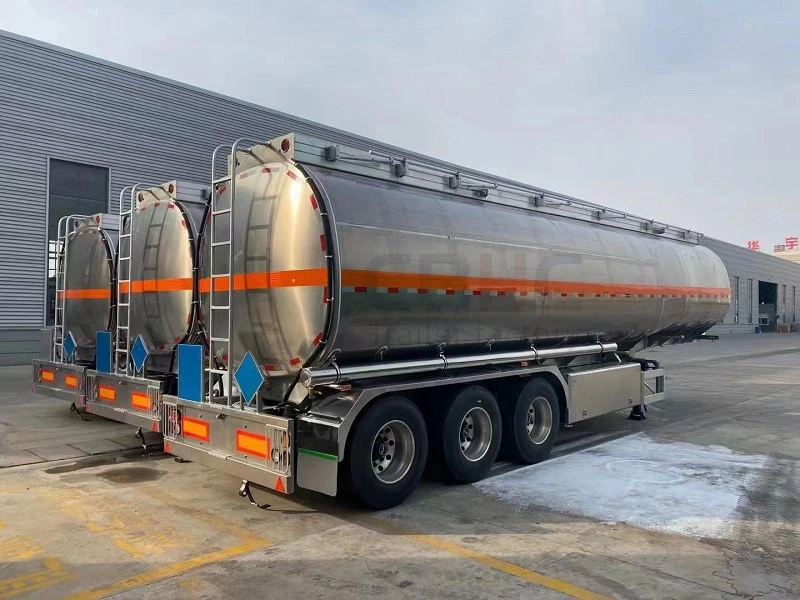

detail picture
FAQ
1.How about payment?
2.How about delivery time?
3.What about your products quality?
4.MOQ?
5.Can you customized semi trailer as our requests?
6.Can you paint our company logo on the trailer?
