Description

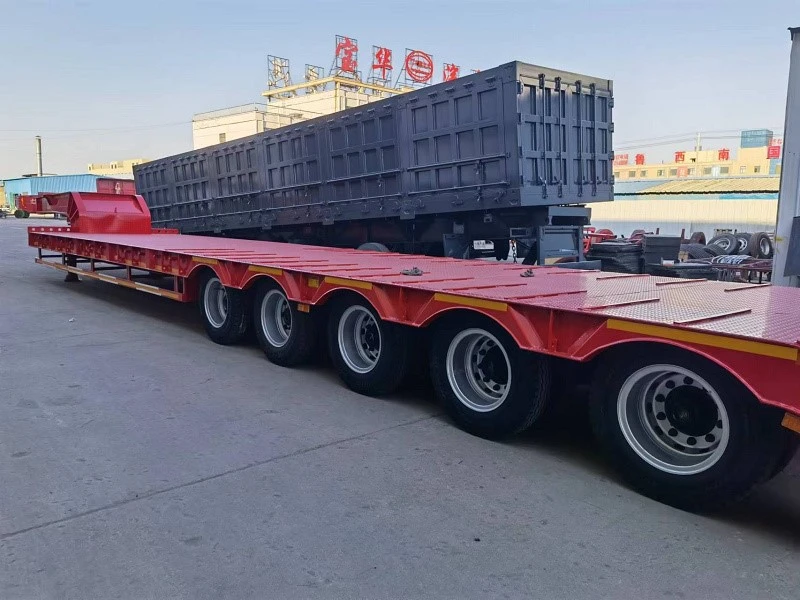

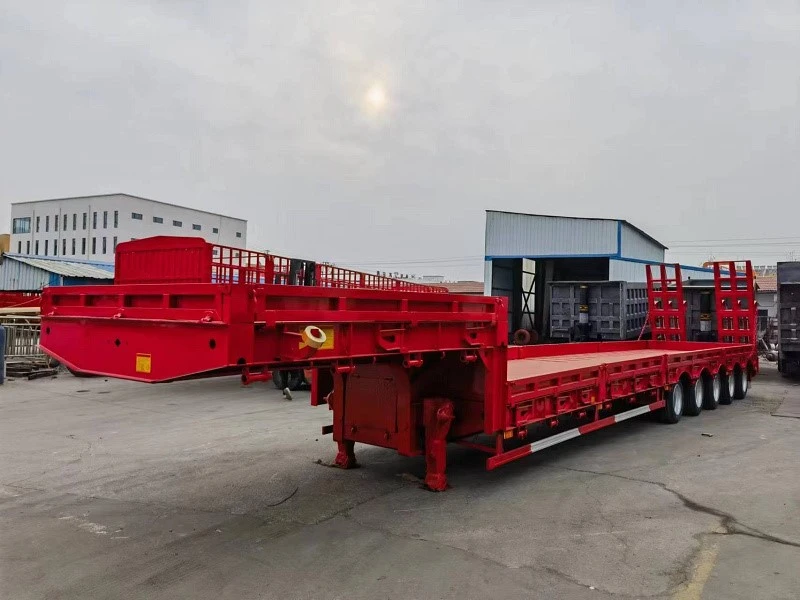

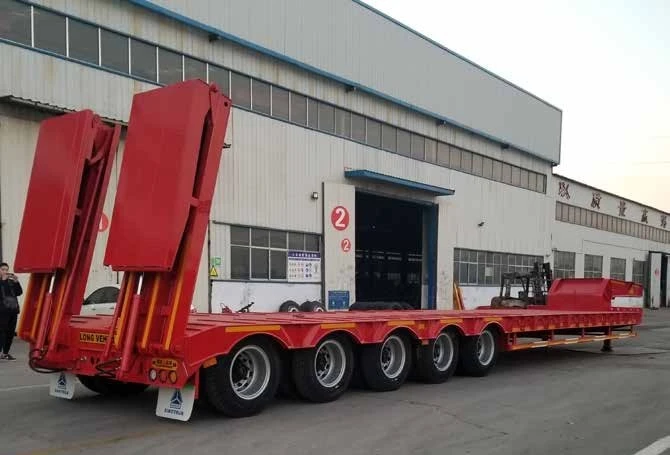

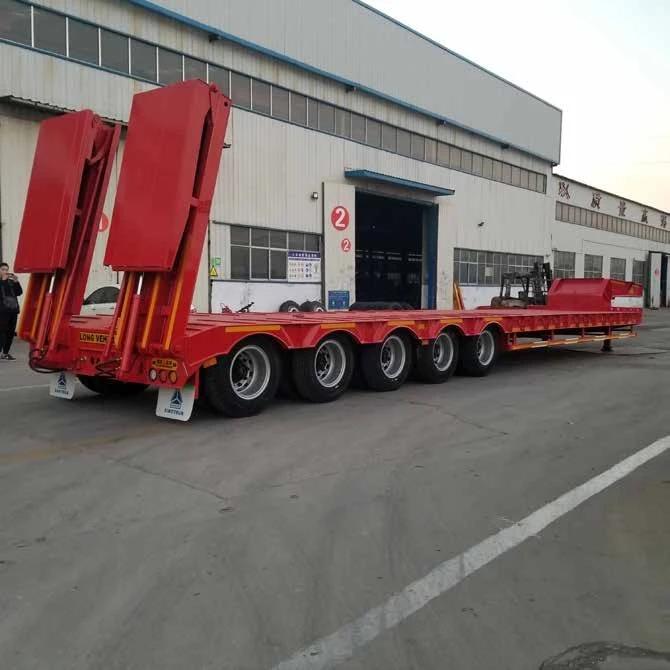

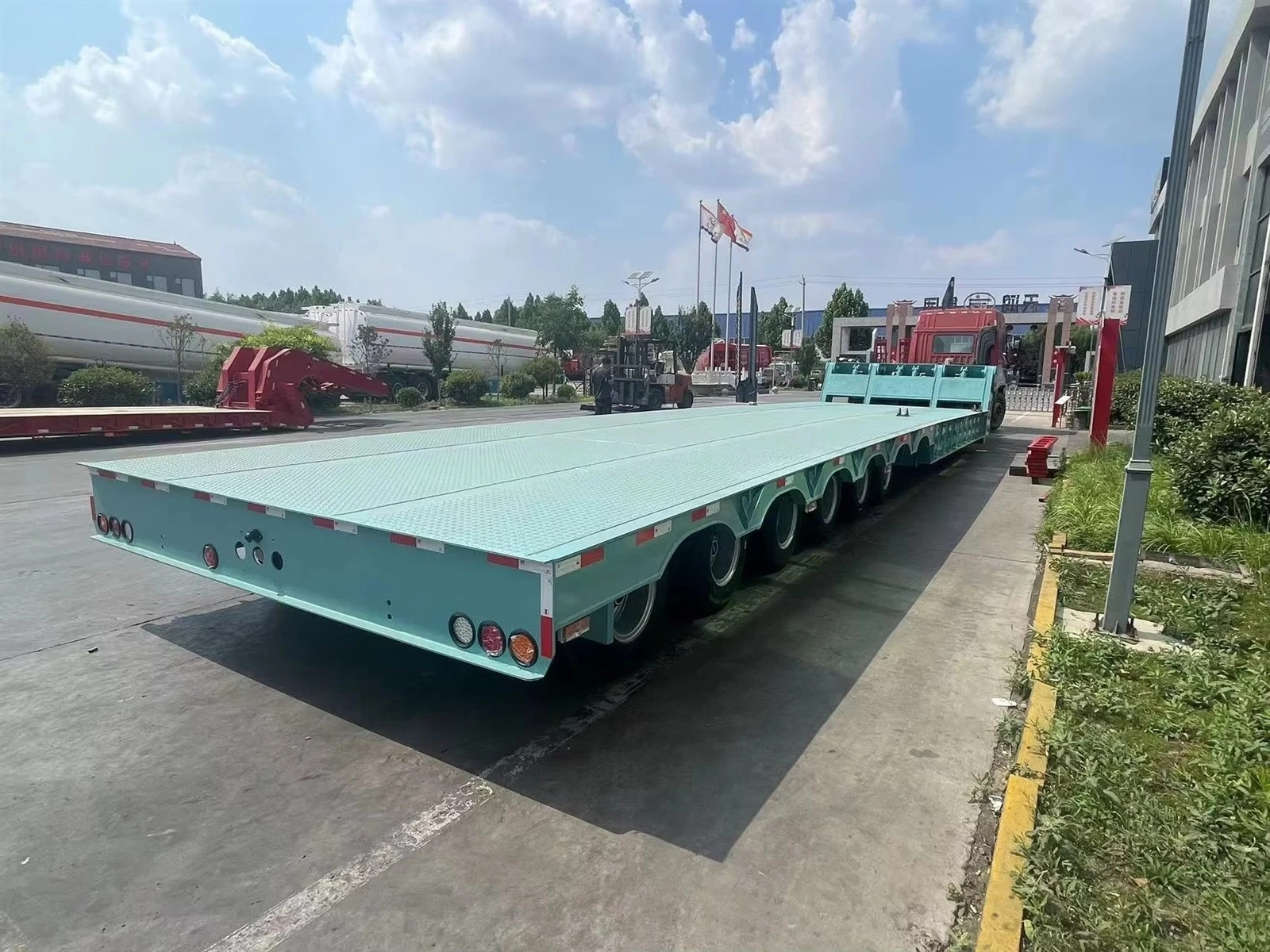

5 Axle Heavy Duty Low Bed Trailer

Low-bed semi-trailers have no side panels on the vehicle and are widely used. They are mainly used for medium and long-distance freight transportation. Low-bed semi-trailers are usually used to transport heavy-duty vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, and agricultural machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) And other heavy-duty goods, the lower the center of gravity, the better the stability and safety, and the stronger the ability to transport over-height goods and pass overhead obstacles.

Low Bed Trailer Manufacturer

Product Parameter (specification)

Why Choose Us

Factory Direct, No Middle Man, No Agency Fees, Therefore Low Price For High Quality Only From Us. Directly Manufactured From Our Own Factory, Can Be Customized For Various Needs Cutting Edge Automation Equipment Adopted In The Factory, Improved Quality From Traditional Production Methods Light Weight Of The Whole Vehicle, Guaranteed Anti Distortion, Anti-seismic And Anti Bumping Steel Welded By Automatic Submerged Arc Process, Connection Spots Look Flawless, More Solid And Durable Compared With Traditional Manual Ways. Cover Painting Is More Sustainable, Corrosion-resistant, Uniform And Smooth, Using Sand Blasting Powder Painting Process

Product Type & Model	5 Axles Lowbed Semi Trailer
Chassis Platform Type	Flat, pool or front loaded platform options
Flat, pool or front loaded platform options	ST-52 or equivalent steel (Optional special steel for light weight design)
Total Length	Drum brake type
Suspension Type	Air suspension and equipments (Optional any type)
Air Line	Standard dual circuit brake hardware
Brake System	Integrated 2 Unit 2S/2M or 1 Unit 4S/3M EBS System, WABCO or KNORR brand
Color	Can be customized

Product Feature and Application

Lowbed semi trailers which is knows also low loader and can carry heavy loads , excavators , construction machines, transformer, generator , cranes , caravans , army tanks and different kind of big machines. Lowbed Semi Trailers can be produced between 2 axles to 8 axles and loading capacity starting from 20 Tons to 180 Tons , rear or front loading Lowbed Trailers and platform as customer demand with different kind of specification according to demand. Self steering axles, hydraulic auto remote control axles, pool type chassis, Low bed Trailers hydraulic ramp, platform type chassis can be used in different kind of Low bed trailer.

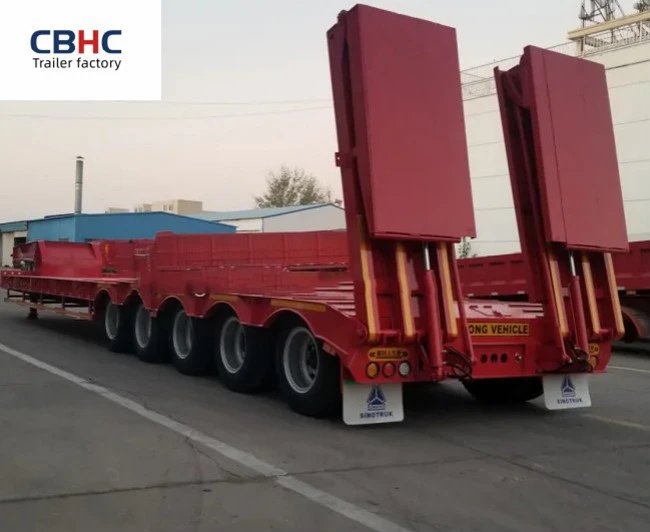

1.Mechanical or hydraulic climbing ramp is an option for easy loading and unloading

2.Lower height (hydraulic and air suspension be able to adjust height)

3.Detachable gooseneck is an option

4.Small turning radius, up to 55° steering angle

5.Both automatically and manually all wheels steering

6.Drop deck minimize trailer's platform height, increase traffic ability for over height cargo

7.Side bracket is an option(for increase overall width), removable and swinging
