Description

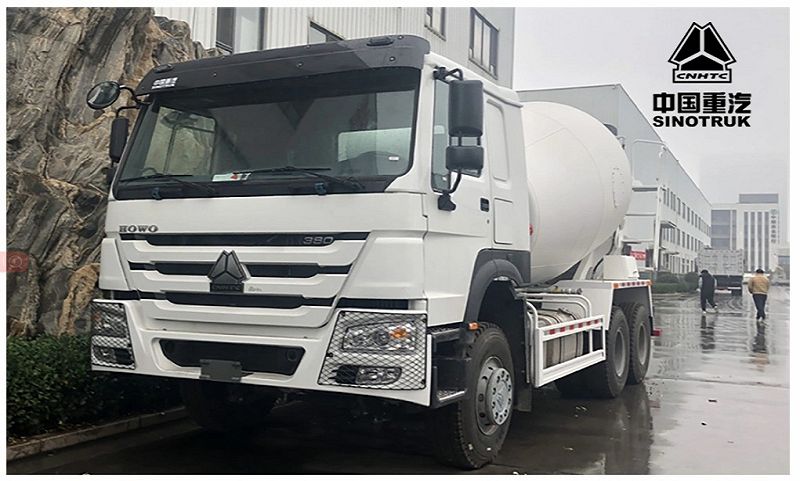

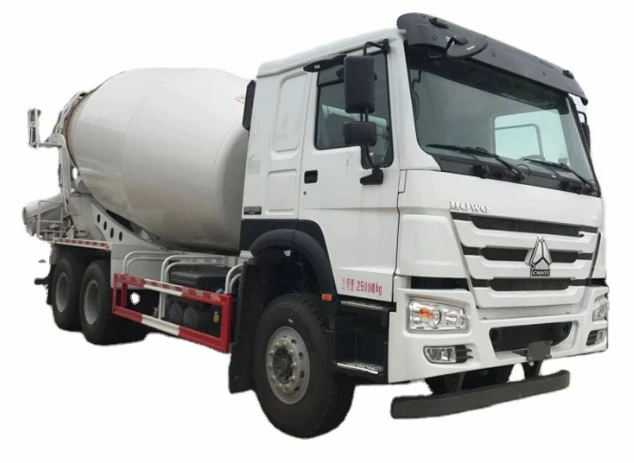

Howo Concrete Agitator Truck

The Howo mixer truck is a heavy-duty vehicle with a mixing drum capacity of up to 14 cubic meters. The truck is powered by a robust engine and has a transmission system that ensures smooth gear shifting. The hydraulic system allows for easy operation of the mixing drum, while the water supply system ensures accurate and consistent water addition to the concrete mixture. The truck's high-strength steel construction makes it durable and able to withstand the stresses of heavy-duty construction work. Overall, the Howo mixer truck is a reliable and efficient solution for transporting and mixing concrete on construction sites.

Howo Concrete Agitator Truck Manufacturers

Product Parameter (specification)

Model NO.	Sinotruk HOWO
Payload	30T
Drive Mode	6x4
Front Axle	Hf9 Drum Brake, 9000kg
HS Code	8716900000
Maximum Horsepower	300-400hp
Tyre	12.00r20, 10+1PC
Rated Mass	Rated Mass

Product Feature and Application

At present, the Howo concrete Agitator truck is an indispensable professional transportation tool for urban construction roads, bridges, houses, water conservancy projects, and mixing stations. The small concrete mixer truck has the characteristics of narrow body, short wheelbase, small turning radius and other personalized designs, and has strong advantages in working environments with limited height, width and length. The Howo concrete Agitator and transportation tank can rely on the power of the dump truck to drive the gear oil pump and the hydraulic motor to drive the tank car to run. The hydraulic components are controlled by the control lever, which can realize the normal and fast operation of the tank car, fast feeding, fast unloading and slow unloading material. Thanks to the oil circuit cooler, the oil temperature is always kept below 55°C to ensure the stable operation of the hydraulic motor.

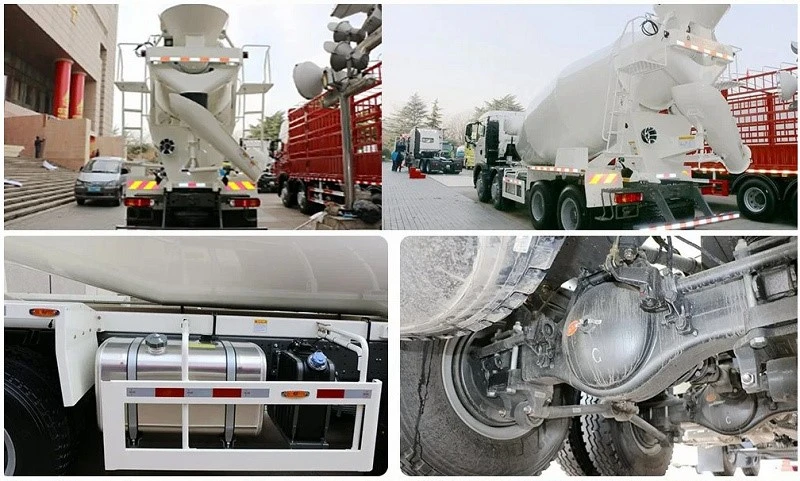

Production Details

Howo Concrete Agitator Truck Suppliers

• Double Logarithmic Variable Pitch Helical Mixer Blade:

which enables higher charing and discharging speed and even mixing, eliminates segregation of concrete and is suitable for the transportation of both dry and wet materials.

• The geometric capacity of the agitator drum is very large and the filling rate is low, thus guaranteeing more mixing space. The small inclined angle and low center of gravity help reducing the possibility of turning-over of the truck.

• Pneumatic Water Supply System:

The pressure is provided by the air tank on the chassis with pressure protection devices. The pressure is provided by the air tank on the chassis with pressure protection devices. The water inlet connector fits for both normal water pipe and fire fitting.

• Three-point operation system:

One in the cab to allow control of the agitator drum, to turn forward and reverse, and to perform the "feed", "discharging", "agitate" and "stop" functions. Two at the rear with one operation handle at each side to perform "charge", "accelerate", "discharge", "agitate" and "stop", all of which are interlocked.

Howo Concrete Agitator Truck Suppliers

• New T-shape Blade technology.

It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance.

• Closed loop hydraulic system and constant hydraulic oil temperature controller.

Key hydraulic accessories including: Hydraulic plunger pump, adjuster mechanism with servo, hydraulic motor, and planetary reducer, all of which are manufactured in world-known brands with stable and reliable performances.

• Multi-outlet washing design of which the cleaning requirements are met with the three fixed pipes for washing the agitator drum, charging hopper and discharging hopper respectively, and another flexible water outlet.
