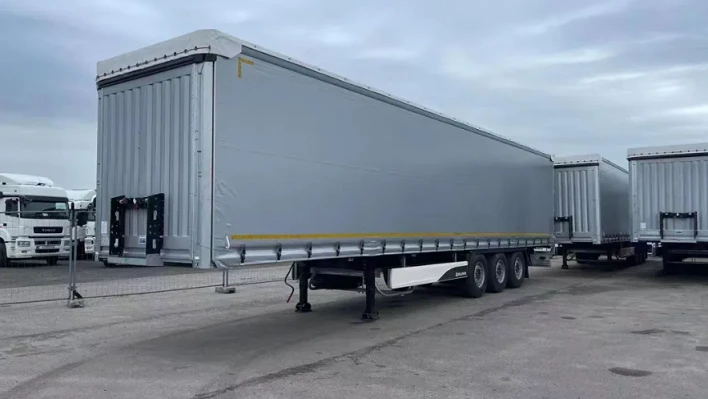

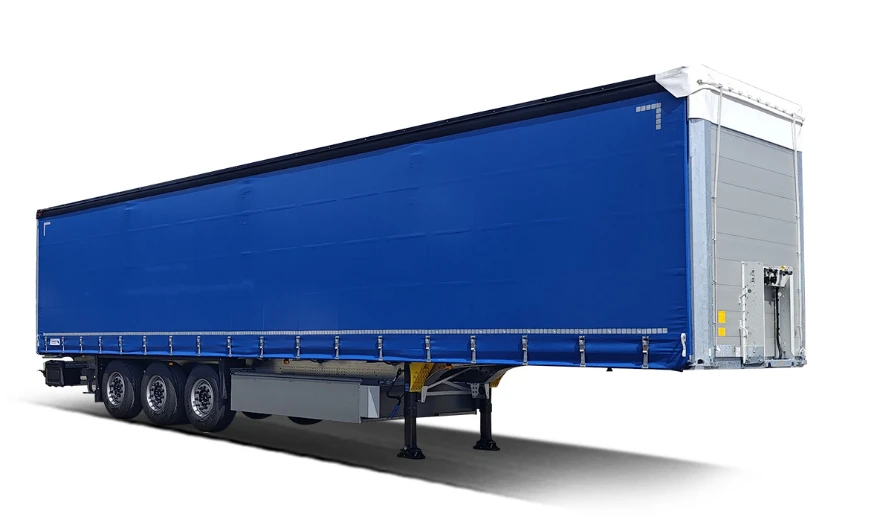

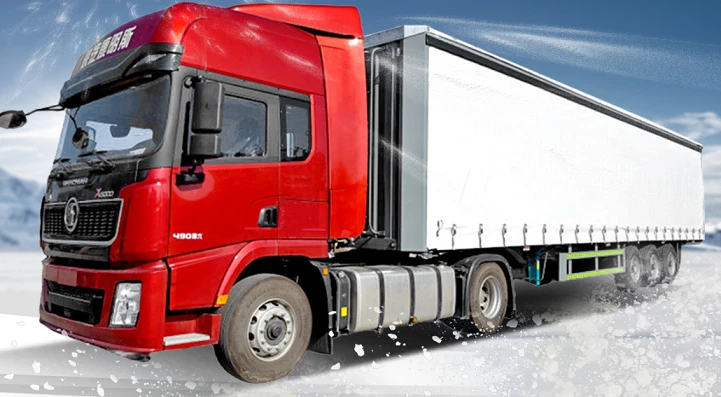

Curtain side semi-trailers

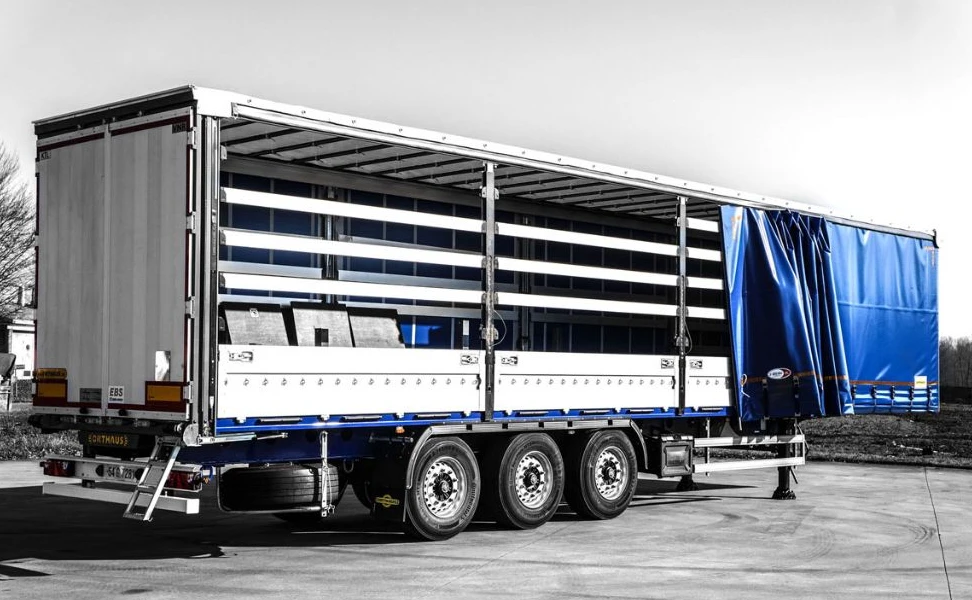

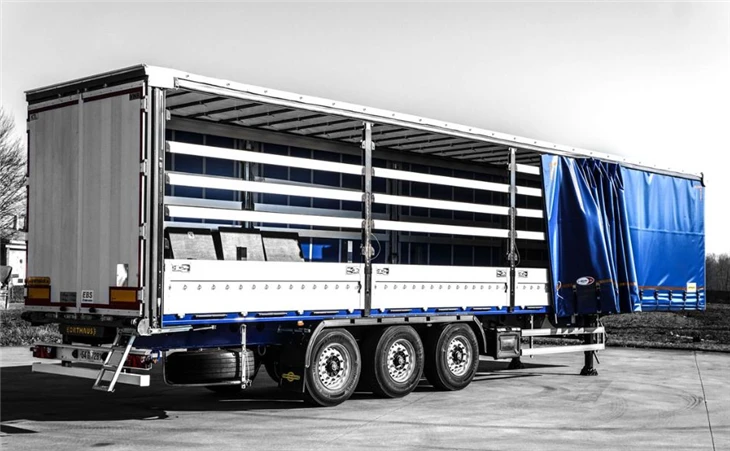

Curtain-side trailers can load and unload cargo on both sides at the same time, and the loading and unloading efficiency is much higher than that of side-rail or gate-type trailers. The sliding roof can be opened for loading, and heavy goods such as steel coils can be hoisted into the side curtain car by a crane and then fixed.
Curtain-side trucks have almost no choice in the type of goods they transport. LTL, department stores, fruits, vegetables, and trees can basically be transported as long as they can be loaded;

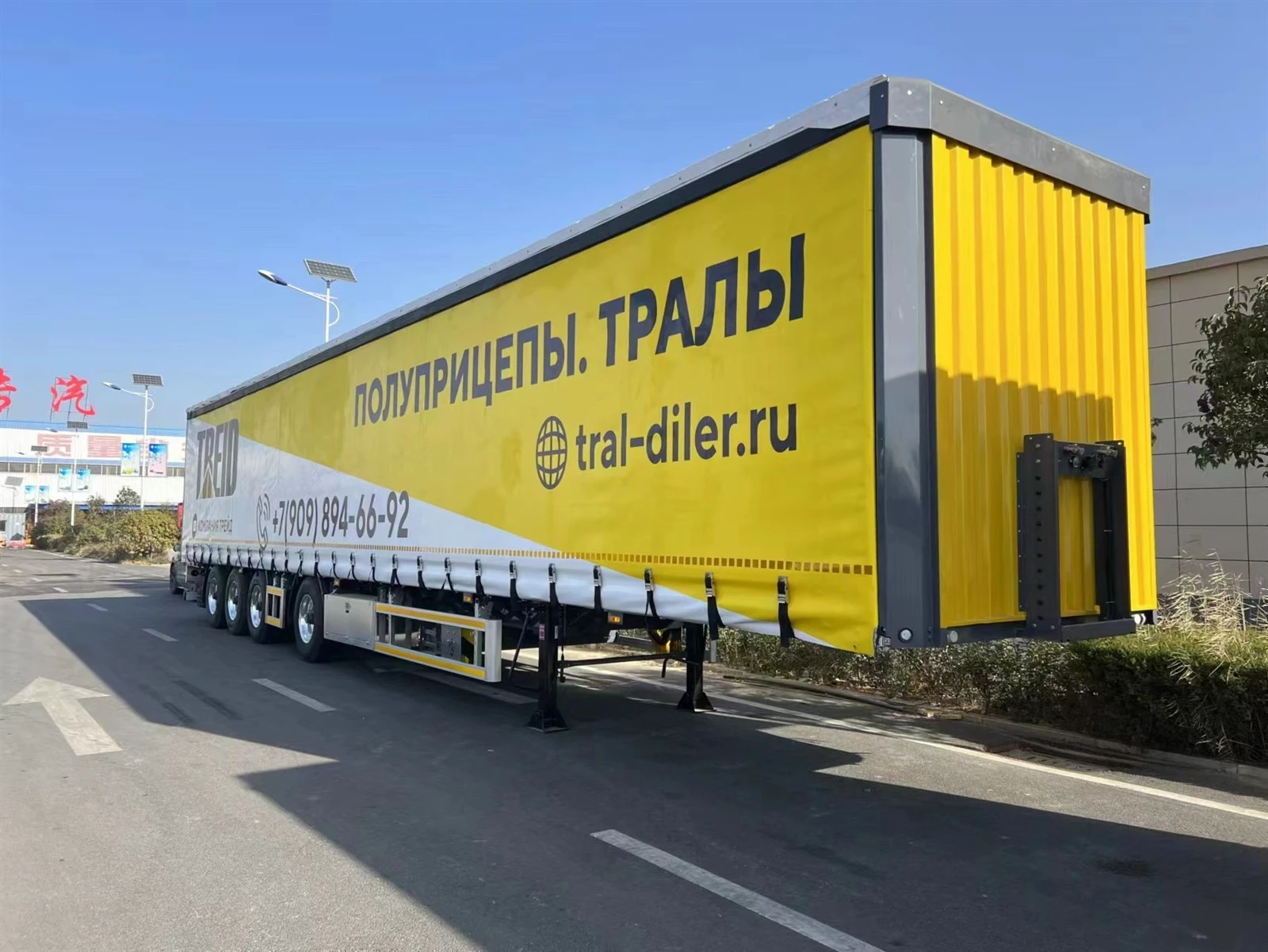

In addition, the curtain fabric around the side curtain trailer is also convenient for printing patterns, which plays an excellent role in promoting the brand image of the transporter.
Product Parameter (specification)
| General | |||
| Grade | Heavy Duty | ||
| Overall Dimension | 13000x2550x3800mm | ||
| Load Capacity | 30t-60t | Self-dumping | Not Self-dumping |
| Tire Number | 8/12/16 | Material | Steel |
| Origin | Shandong | Axle Number | 2/3/4 |
| Production Capacity | 500/Month | ||
| Running Gear | |||
| Suspension |
Mechanical Air Suspension |
||
| Tires | 12.00R20 | ||
| Axles | FUWA, BPW or STEYR axle, 13T capacity | ||
|
Brake System |
WABCO RE6 relay valve T30/30+T30 Spring brake chamber, 45L air chamber |
||
| Under Frame | |||
| Main Beam | The height of beam is 500mm Upper plate is 14mm Down plate is 16mm Middle plate is 8mm |
||
| Axle | 2/3 Axle 13 Ton Axle Fuwa/BPW | ||
| King Pin | Jost 2"(50mm)Or3.5"(90mm) | ||
| Landing Gear | JOST,or other brand | ||
| Platform plate | 3mm plate | ||
| Electrical & Paint | |||
| Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||
| Wiring | 24V, 6 lines | ||
| Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | ||
| Paint | Two coat of anti-corrosion prime; one coat of finish painting | ||
Product Feature and Application
~~Design Drawing: Before production, we will sent the design drawing to our customer to confirm the detail of the vehicle. We hope we can supply the most suitable product to our customer.
~~~Cutting and Welding: The I beam cutting adopt the Computer Numerical Control Plasma Cutting Machine. The I beam welding adopt the Gantry Main Sill Welding Machine.
~~~The Beam Welding: Main beam and side beam all use I-shaped beam, it can ensure the trailer more durable.Reinforced rear plate can avoid the rear plate was broken away when heavy duty machines climbing the ramp of trailer.
~~~Painting: One layer of the anti-rust painting, two layer of painting
~~~Test: We will test the quality of the trailer before delivery.
Quality Inspection
Packing And Shipping
Customer Praise and certification
FAQ
Q: How long will our price be valid?
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations:
The rate of USD:RMB varies significantly according to the international currency exchange rates.
Manufacturers/factories adjusted the trailer price, because of the increasing labor cost and raw material cost.
Q: Which payment terms can we accept?
√√ On T/T term, 30% down payment is required in advance, 70% balance shall be settled before delivery, or against the copy of original B/L for regular client.
√√ On L/C term, normally need 30% down payment by T/T, 70% by L/C at sight. a 100% irrevocable L/C without "soft clauses" can be accepted sometimes. Please seek the advice from the individual sales manager whom you work with.
Q: What logistics ways we can work for shipment?
√√ For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
√√ For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway.
√√ For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
