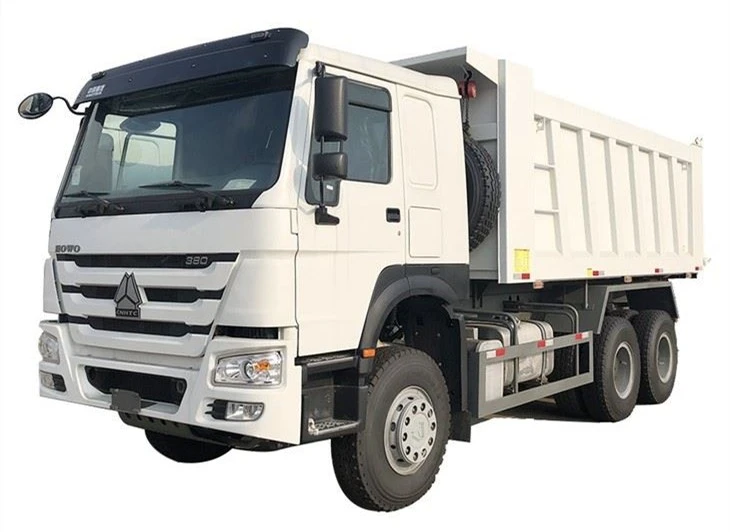

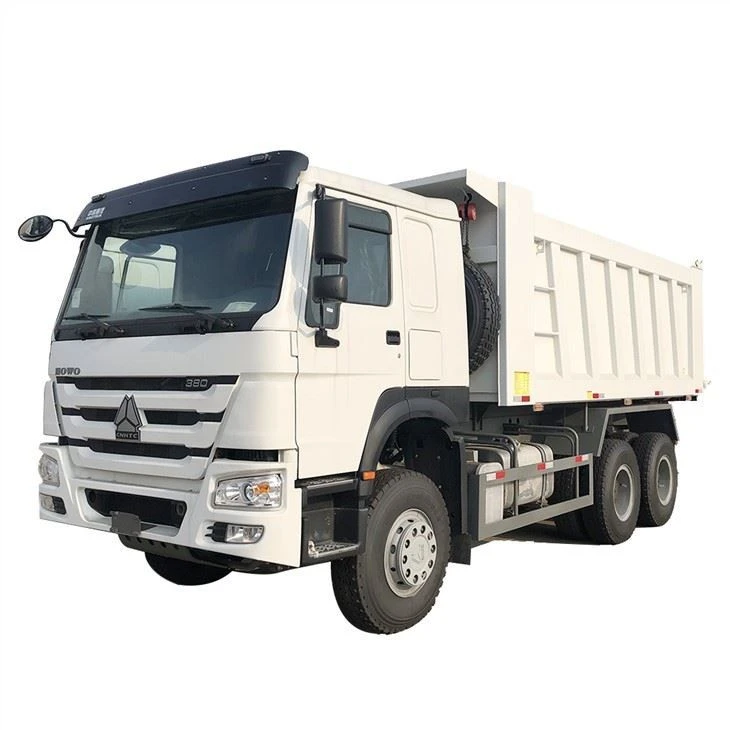

Sinotruk Howo 380 Hp Dump Truck
The SINOTRUK Howo 380 dump truck is a high-performance, high-quality commercial model and a heavy-duty dump truck under the SINOTRUK Group. It adopts advanced technology and design concepts, has strong power and stable performance, and can meet the transportation needs of various goods.
The power system of SINOTRUK Howo 380 dump truck adopts advanced engine and transmission system, which can provide strong power and efficient fuel economy. This model is equipped with the WP10.380E32 engine newly developed by SINOTRUK Group, with a maximum power of 380 horsepower and a maximum torque of 1,500 Nm. It has excellent power perfor- mance and reliable operating performance. At the same time the car also uses a 6-speed hydraulic transmission, which can provide a smooth shifting experience and efficient transmission efficiency.
|
Chassis parameters |
||||
|
Chassis model |
ZZ3317N4267C1 |
Chassis brand |
SINOTRUK |
|
|
Overall dimensions |
9850X2496X3115mm |
Wheel base |
1800+4200+1350mm |
|
|
Front/rear wheel track |
2022/2022/2041/2041mm |
Front/rear suspension |
1500/1000mm |
|
|
Approach/departure angle |
19/47° |
Maximum speed |
75km/h |
|
|
Chassis Manufacturer |
China National Heavy Duty Truck Group Co.,Ltd |
|||
|
Cab |
Configuration |
HW76 cab,a row and a half deluxe cab(with sleeping berth),allowable 3 passengers |
||
|
Color |
White,other color is optional |
|||
|
Engine |
Model |
WD615.96C |
||
|
Emission |
Euro 3 |
|||
|
Type |
6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine |
|||
|
Rated power |
380hp,rated power speed 2000rpm |
|||
|
Displacement |
9726ml |
|||
|
Max.torque |
1590N.m |
|||
|
Bore x stroke |
126x130mm |
|||
|
Manufacturer |
China National Heavy Duty Truck Group Co.,Ltd |
|||
|
Tire |
Size |
12.00R20 steel wire tire |
||
|
Number |
12+1 nos |
|||
|
Clutch |
φ430 diaphragm clutch |
|||
|
Fuel tank |
350L iron oil tank |
|||
|
Front axle |
HF9 |
|||
|
Rear axle |
HC16 |
|||
|
Drive form |
8X4 |
|||
|
Suspension |
Multi leaf springs |
|||
|
Rated voltage |
24V,DC |
|||
|
Transmissions |
gearbox HW19710,10 speed forward 2 reverse. |
|||
|
Steering device |
Power assisted steering,steering machine(domestic ZF technology) |
|||
|
Steering wheel |
Left hand drive |
|||
|
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
||||
|
Dump truck structure parameters |
||||
|
Van body dimensions |
7800X2300X1500mm |
Side wall |
6mm |
|
|
Bottom plate |
8mm |
Van body material |
Common steel |
|
|
Lifting position |
Front |
Dumping direction |
Rear |
|
|
Oil Cylinder |
Domestic φ180 |
Color and Logo |
Optional |
|
|
Standard configuration |
Light duty:chassis,sub frame,van body side 4mm bottom 5mm,domestic middle lifting hydraulic cylinder φ198,common steel,two longitudinal beams,rectangular van body,single door Heavy duty:chassis,sub frame,van body side 4mm bottom 6mm,domestic front lifting hydraulic cylinder φ180,common steel,four longitudinal beams,rectangular van body,single door |
|||
|
Selective configuration |
HYVA,PENTA cylinder,van body thickness(side 4mm to 6mm,bottom 6mm to 12mm),other requirements,truck crane,manganese plate and floor heating,side dumping. |
|||

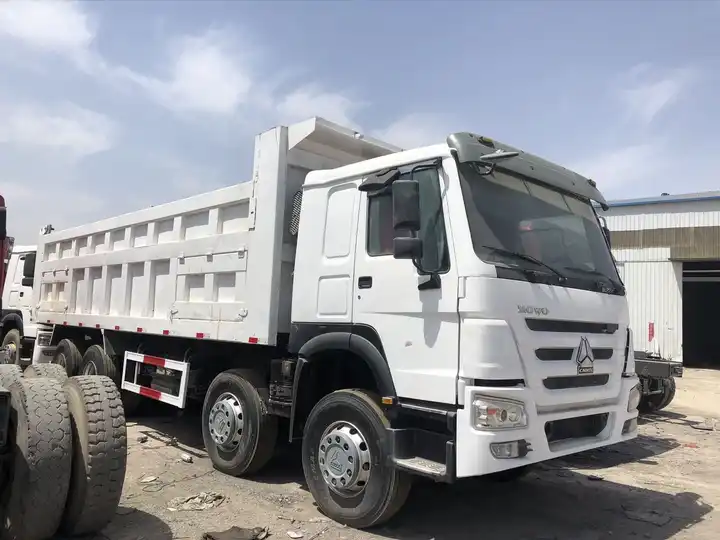

howo 380
