American and German axle
Semi Trailer Axle Series

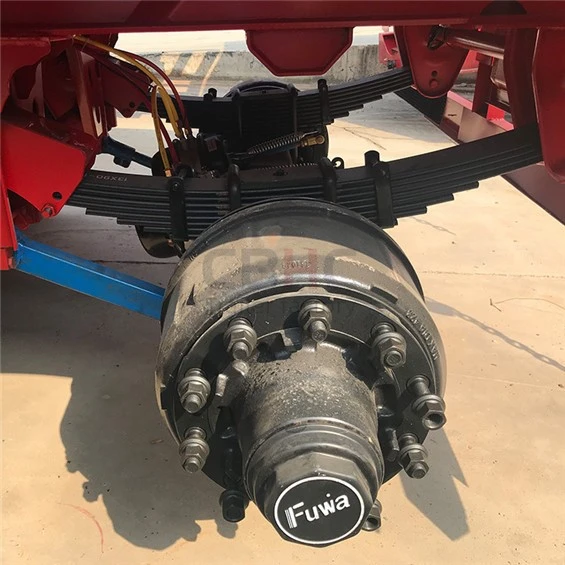

The trailer axle is connected with the vehicle frame through the suspension, and the wheels are installed at both ends. The purpose of the trailer axle is to bear the load of the vehicle and keep the vehicle on the road.
Apply
Used in flat trailer, frame trailer, car trailer, low flat trailer, dump trailer, etc
Type

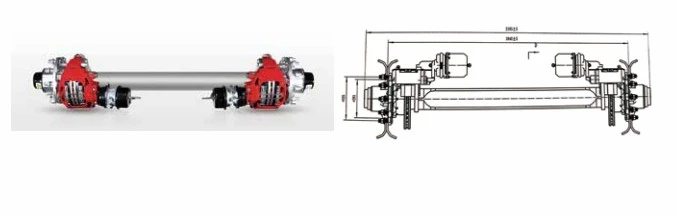

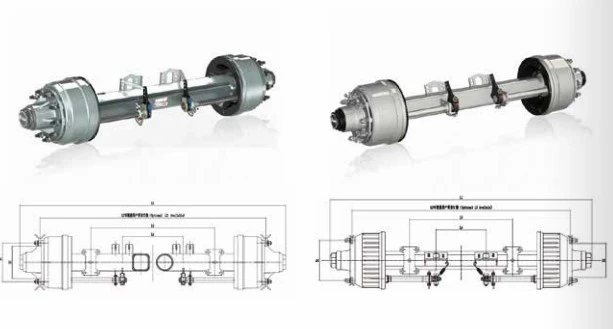

Axles are divided into: German style axle, American style axle, axis axle, disc brake axle
technical parameters
|
Axle Trpe |
Max Capacity (T) |
SP Track(mm)L2 |
Brake Size(mm) |
Axle Tube(mm) |
Total Length L1(mm) |
Wheel Rim is recommended to use |
Weight(Kgs) |
|
BH-12WDE |
12 |
1840 |
Φ420 * 180 |
150 * 150 * 12 |
2172 |
7.5v-20 |
380 |
|
BH-13WDE |
13 |
1840 |
Φ420 * 200 |
150 * 150 * 12 |
2172 |
7.5v-20 |
381 |
|
BH-14WDE |
14 |
1850 |
Φ420 * 200 |
150 * 150 * 14 |
2222 |
8.0v-20 |
412 |
|
BH-16WDE |
16 |
1850 |
Φ420 * 200 |
150 * 150 * 16 |
2293 |
8.5v-20 |
439 |
|
BH-18WDE |
18 |
1850 |
Φ420 * 220 |
150 * 150 * 18 |
2293 |
8.5v-20 |
454 |
|
BH-20WDE |
20 |
1850 |
Φ420 * 220 |
150 * 150 * 20 |
2293 |
8.5v-20 |
459 |
|
BH-25WDE |
25 |
1850 |
Φ420 * 180 |
150 * 150 * 22 |
2293 |
8.5v-20 |
475 |
|
BH-30WDE |
30 |
1850 |
Φ420 * 245 |
150 * 150 * 22 |
2298 |
8.5v-20 |
498 |
Benhong axle advantage
1. In terms of raw materials, we choose high-strength alloy seamless steel pipe, after 1300℃ a hot rolling, one-time cold push square forming, 865℃ intermediate frequency quenching, 480℃ heat preservation treatment, CNC machine tool precision grinding and other 15 production processes. For the key parts of the bearing connection, the benhong axle is equipped with an intermediate frequency induction strengthening process to improve the safety and stability of the axle to a greater extent, and the bending, torsional and fatigue resistance is stronger.
2. Our shaft tube is processed by special technology, with high strength, light weight and good coaxiality at both ends of the tube body. The trailer axle adopts the "one-piece" heat treatment forming technology, which solves the deformation and bending problems of the axle under the condition of high strength transportation.

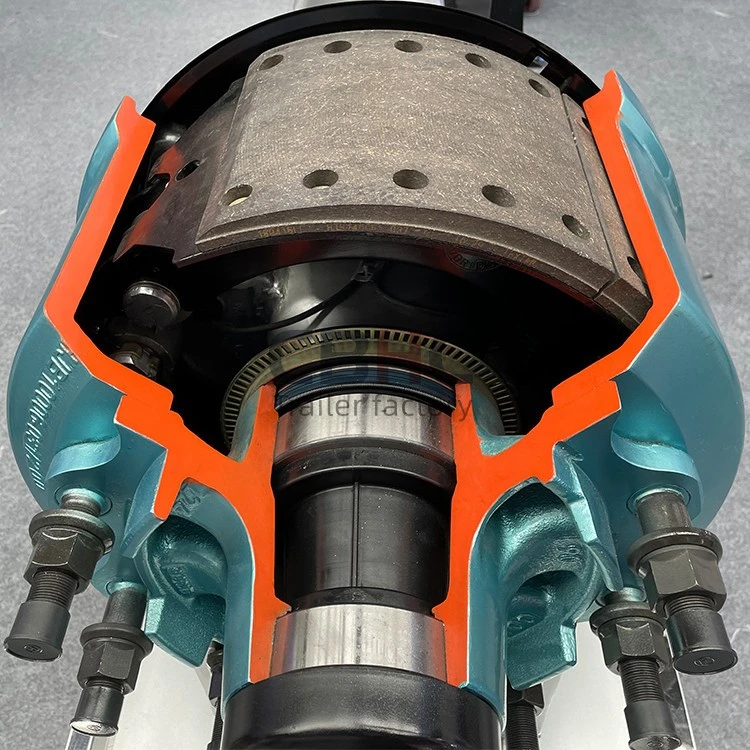

3. Advantages of brake shoe seat: The six-hole boring machine for brake shoe seat uses six holes to complete the processing at one time, with high processing capacity and high cost performance
Precise positioning, asbestos-free friction plate, in line with international environmental standards.
3. Quality assurance:
1). Axle tube warranty for one year or 150,000 km.
Brake assembly and bearings are guaranteed for 3 months.
3). Wheels and drums are guaranteed for 6 months.
We not only have 13tons Round FUWA Axle, but also bpw, saf and many other axles, you can get the lowest price and the best service here!
